High-Precision IEC Test Equipment General Test Bench: Modular Multi-Station Design for Reliable Electrical Safety Compliance

نام تجاری:	HongCe
شماره مدل:	HCUN01
مقدار تولیدی:	1SET
قیمت:	قابل مذاکره
شرایط پرداخت:	T/T ، L/C ، D/P
توانایی عرضه:	1SET

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

calibration certificate(cost additional)

دامنه دمای ترموکوپل:

100 درجه سانتیگراد

ولتاژ منبع تغذیه:

380 ولت 50 هرتز

ابعاد:

2000mm * 1000mm * 1500mm

وزن:

تقریباً 350 کیلوگرم

رنگ:

خاکستری آبی

گارانتی:

یک سال

جزئیات بسته بندی:

تخته سه لا

توضیحات محصول

High-Precision IEC Test Equipment General Test Bench: Modular Multi-Station Design for Reliable Electrical Safety Compliance

Ensure the highest safety standards for your electrical products with the HongCe General Test Bench. Engineered for versatility and precision, this direct-from-factory solution provides a seamless testing experience for global compliance. Designed by the source manufacturer, it combines robust industrial engineering with intuitive operation to protect your brand and your end-users.

Product Introduction

In an era where electrical safety is non-negotiable, your lab needs a partner that understands the nuances of global standards. At HongCe, we don’t just build equipment; we build the foundation of consumer trust.

Our General Test Bench is the culmination of decades of engineering expertise. As a source manufacturer, we eliminate the middleman, offering you direct access to technical excellence and dedicated support. Whether you are testing delicate household electronics or robust automotive components, this test bench provides the stability and accuracy required to navigate the complexities of international certification with total confidence.

Product Features

Source Manufacturer Advantage: Direct supply from HongCe ensures genuine parts, competitive pricing, and unparalleled technical insights.
Modular Versatility: The system’s modular architecture allows for easy upgrades and configuration changes to meet evolving testing requirements.
High-Precision Measurement: Integrated with advanced sensors to provide stable, repeatable data that satisfies the most stringent audit requirements.
Human-Centric Interface: Designed with the operator in mind, reducing the learning curve and minimizing human error during high-stakes testing.
Exceptional Durability: Built with industrial-grade materials to withstand continuous operation in demanding laboratory environments.

International Reference Standards

IEC 60335-1: Safety of household and similar electrical appliances.
IEC 60598-1: Luminaires – General requirements and tests.
IEC 60884-1: Plugs and socket-outlets for household and similar purposes.
IEC 60601-1: Medical electrical equipment safety and essential performance.
IEC 60950/62368-1: Safety requirements for Audio/Video, Information, and Communication Technology.

Technical Parameters:

Adjustable Power Supply Voltage:10V 1000A

Adjustable DC Power Supply:40VDC 75A

Adjustable DC Power Supply:40VDC 15A

Thermocouple Temperature Range:100°C

Power Supply Voltage:380V 50Hz

Main Unit and Components:Made of rust- and corrosion-resistant materials (customizable)

Dimensions:2000mm * 1000mm * 1500mm (customizable)

Weight:Approximately 350kg

Test Scope: What Can Be Verified?

Test Objects:

Home Appliances (Washing machines, ovens, refrigerators).
Automotive Electrical Systems & Connectors.
Lighting Fixtures and Power Adapters.
Industrial Control Panels.

Measurable Items:

Dielectric Strength (Hi-Pot).
Insulation Resistance.
Grounding Continuity.
Leakage Current (Touch, Earth, and Functional).
Power Consumption & Load Performance.

Detailed images

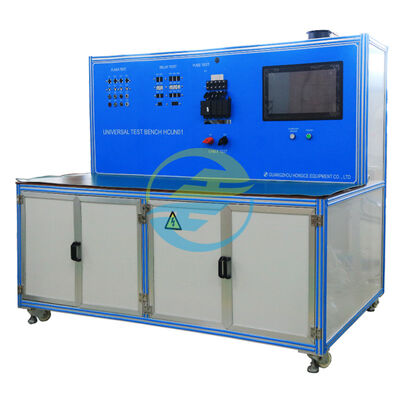

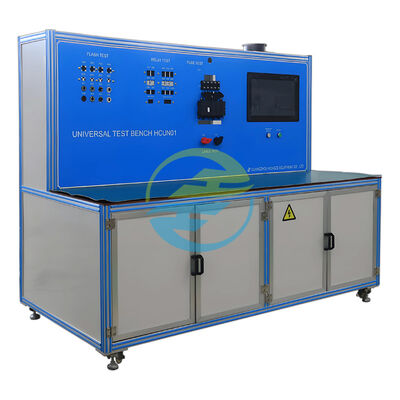

High-Precision IEC Test Equipment General Test Bench: Modular Multi-Station Design for Reliable Electrical Safety Compliance 0

FAQ

Q: Can the test bench be customized for specific non-standard tests?

A: Absolutely. As the source manufacturer, HongCe specializes in tailoring modular designs to meet unique client specifications.

Q: Does the equipment come with a calibration certificate?

A: Yes, all HongCe units undergo rigorous factory calibration and come with a detailed test report.

Q: How do you handle international shipping and installation?

A: We offer secure global shipping and provide comprehensive video tutorials and remote engineering support for setup.
