Carton Compression Impact Testing Machine for Packaging Box Compressive Strength & Deformation Testing

نام تجاری:	HongCe
شماره مدل:	SH-16
مقدار تولیدی:	1 مجموعه
قیمت:	Negotiatable
شرایط پرداخت:	L/C، T/T
توانایی عرضه:	20 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Third part calibration certificate(cost additional)

هدف:

کارتن، بسته بندی

استاندارد:

ISO2872، ISO2784، ISO12048، ISO2234

تست کنید:

آزمون فشرده سازی

ظرفیت:

1 ت

دقت:

± 0.5٪

جابجایی:

650 ~ 1500 میلی متر

سرعت تست:

0-5000N 12.5±2.5mm/min. 5001-10000N 10±3mm/min

فضای تست:

600 ~ 1500 میلی متر

جزئیات بسته بندی:

تخته سه لا

توضیحات محصول

Carton Compression Impact Testing Machine for Packaging Box Compressive Strength & Deformation Testing

High Precision Carton Compression Impact Testing Machine for Packaging Box Strength and Deformation Evaluation

Product Brief Description

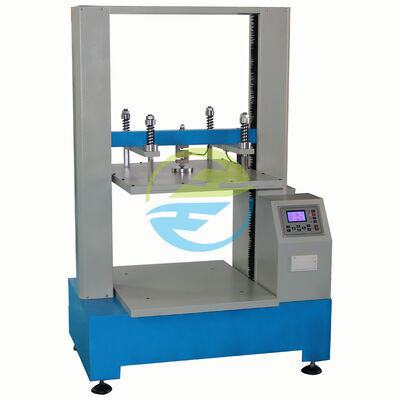

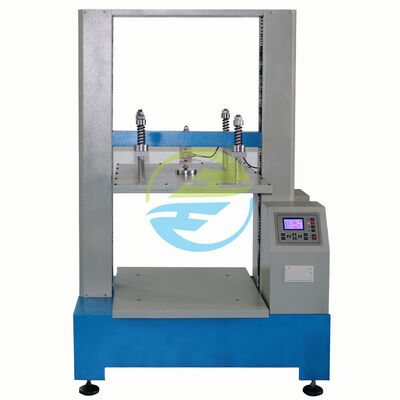

The HongCe Carton Compression Impact Testing Machine is designed for professional compressive strength, stacking resistance, and deformation testing of cartons, corrugated boxes, and packaging materials. Engineered for reliable quality control and transportation simulation, this equipment helps manufacturers improve packaging durability while reducing product damage risks during storage and shipment.

Produced directly by HongCe, the machine combines precision control technology, stable testing performance, and durable structural design, making it suitable for laboratories, packaging manufacturers, logistics industries, and quality inspection departments worldwide.

International Reference Standards

ISO Standards

ISO 12048 Packaging — Complete Filled Transport Packages — Compression and Stacking Tests
ISO 2234 Packaging — Complete Filled Transport Packages and Unit Loads — Stacking Tests Using Static Load

ASTM Standards

ASTM D642 Standard Test Method for Determining Compressive Resistance of Shipping Containers
ASTM D4169 Performance Testing of Shipping Containers and Systems

TAPPI Standards

TAPPI T804 Compression Test of Fiberboard Shipping Containers

GB Standards

GB/T 4857 Packaging Transport Package Compression Test Method

Specifications:

Capacity	1T
Accuracy	±0.5%
Control panel	can display and print test times, test value, peak value and fracture value etc.
Displacement	650~1500mm
Test speed	0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min
Test space	600~1500mm
Compressive strength test function	to determination of the ultimate compressive strength of the sample, the test machine will automatically record the peak pressure
Stacking strength test functions	to test the bearing durability of packaging by simulate storage conditions, tester compress the sample in a speed of 12.5(10)mm/min till the pressure reach preset force, when packaging deformation and pressure drop 5% set value, tester will automatic supplement pressure to the preset pressure and maintain till set test time completed, then tester will stop automatically.
Power gear	Ibf, N, Kgf
Transmission mode	precision ball screw drive
protection device	leakage protection, overload automatic shutdown protection, travel limit protection
print function	automatic print report
motor	Taiwan AC variable frequency motor
Power supply	AC220V 50Hz
Dimension	11008001300mm
Weight	approximate 300kg

Product Applications

Corrugated carton manufacturers
Packaging material factories
Logistics and warehousing companies
E-commerce packaging suppliers
Consumer product manufacturers

Core Technical Advantages

High Precision Compression Control
Advanced load sensing technology ensures accurate and repeatable compression data during testing.
Stable Structural Design
The reinforced mechanical structure improves long-term stability and testing reliability under continuous operation.
Intelligent Data Monitoring
Real-time monitoring allows operators to observe force changes and deformation conditions during the full testing process.
Wide Packaging Compatibility
Suitable for different carton sizes, materials, and industrial packaging applications.

After-Sales Service

Professional product consultation
Technical selection guidance
Equipment installation assistance
Operation training support
Maintenance recommendations
Fast-response after-sales service
Spare parts supply
Long-term technical assistance

FAQ

1. What is the main purpose of this machine?

It is used to evaluate carton compressive strength, deformation resistance, and stacking performance for packaging quality control.

2. Which industries commonly use this equipment?

Packaging manufacturers, logistics companies, e-commerce suppliers, and quality inspection laboratories widely use this machine.

3. Can different carton sizes be tested?

Yes. The machine is suitable for various carton and packaging dimensions within the testing range.

4. Does the machine support holding pressure testing?

Yes. It supports continuous pressure holding tests for long-term load evaluation.

5. Is customization available?

Yes. HongCe can provide customized testing solutions according to customer requirements.
