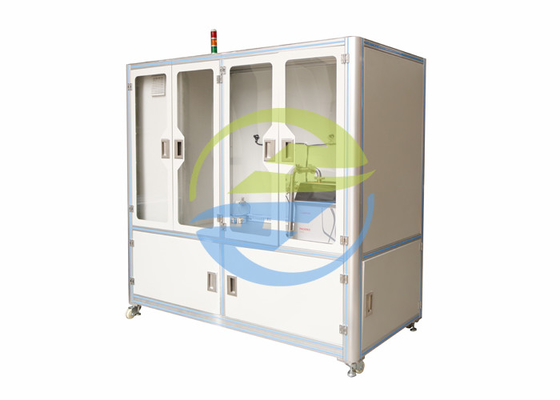

2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

  • 2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
  • 2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s
جزئیات محصول:
محل منبع: چین
نام تجاری: HongCe
گواهی: Calibration Certificate(cost additional)
شماره مدل: HJ113
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: Negotiation
جزئیات بسته بندی: تخته سه لا
زمان تحویل: 3 ماه
شرایط پرداخت: T/T
قابلیت ارائه: 1 مجموعه در ماه
مخاطب
توضیحات محصول جزئیات
ضمانتنامه: 12 ماه قطعه کار: جزء سرامیکی رله
فشار پر کردن بسته: 2 تا 2.5 کیلو پاسکال فشار تخلیه برای بسته: -2 و نیم کیلو در پاسکال
گاز ردیاب: هلیوم میزان نشتی آلارم: 1.44E-4mbar.L/S
چرخه: ≤2 دقیقه حالت آزمون: مکش تفنگ
برجسته:

Ceramic Component Helium Leak Testing Equipment,11pa·m3/s Helium Leak Testing Equipment

,

11pa·m3/s Helium Leak Testing Equipment

Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/S



This equipment is used to test the sealing performance of ceramic components of new energy car relay products.



Overview of Helium Leak Testing Equipment:

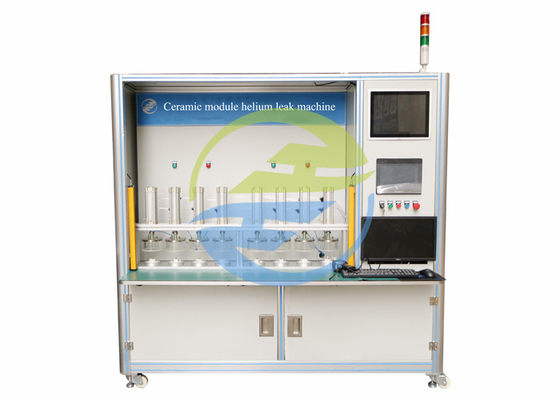

The leak testing equipment for ceramic components is displayed and controlled by touch screen and button switch. Workpieces are placed manually. Two stations are designed, and each station detects four products at the same time. Products with different specifications can be detected by changing the leak detection fixture. When the system detects the leak, the workpiece to be detected is manually placed on the leak detection tool, and the leak detection tool is communicated with the leak detector through the leak detection switching valve. After the workpiece is placed and positioned, the cylinder descends to push the helium nozzle to press the workpiece. Then start the auxiliary pump and start vacuumizing the interior of the workpiece. Then the leak detector continues to take time to clear the background. When the leak detector reaches the background value, the equipment is sprayed with helium.The leak detector judges the leak rate according to the helium gas infiltration.



Technical parameters of Helium Leak Testing Equipment:

Min detectable leak rate: 5×10-11pa·m3/s.
Leak rate display range: 1×10-2 -----1×10-11Pa· m3/s
Start time: ≤ 100s
Response time: ≤ 0.3s
Max pressure of leak detector: 2000Pa
Power requirement: AC220V±10%/50Hz
Leakage rate unit: Pa·m3/s, ppm,mbar·l/s,atm.cc/s
Display interface: Large screen 7.0 inch touch screen display, clear and easy to understand operation interface.



2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s 0
